Geotech Geosmart

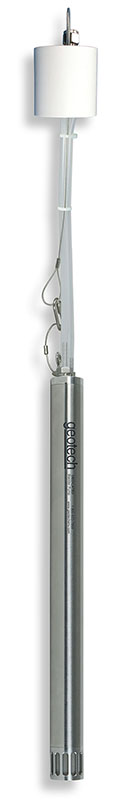

Dedicated Bladder Pump Sampling Systems
Geosmart Dedicated Sampling Systems are custom manufactured to your specifications. Pumps are secured in place with your choice of well caps and tubing. Geosmart pump systems save you installation time and eliminate the potential of cross contamination as compared to portable systems. Consider the cost of routine equipment blanks, decontamination time, wear and tear on your equipment to decide if Geosmart is right for you.
- Cut to length and pre-assembled
Systems are individually packaged for easy installation. - More representative data
Eliminates the risk of cross contamination and is an EPA approved method for VOC collection. - Saves time!
No need to decontaminate since you are not moving pumps from well to well. - Low-flow sample rates
- For .75" (1.9 cm) or larger wells
- Well caps for a variety of applications and budgets.
Custom well cap and fitting options available upon request. - Tubing is available in a variety of sizes & materials:
LDPE, HDPE, PVC nylobraid - HDPE coated stainless steel safety cable

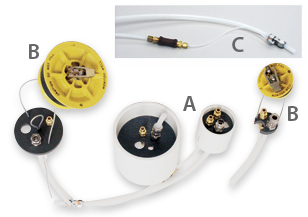

A Standard slip fit well cap for above grade wells.
B Geotech flush mount locking sealing well caps for below grade wells.
C Freeze protection system for discharge line –
Optional feature clears top 10 ft. (3m) of discharge line to protect against freezing in cold climates.
